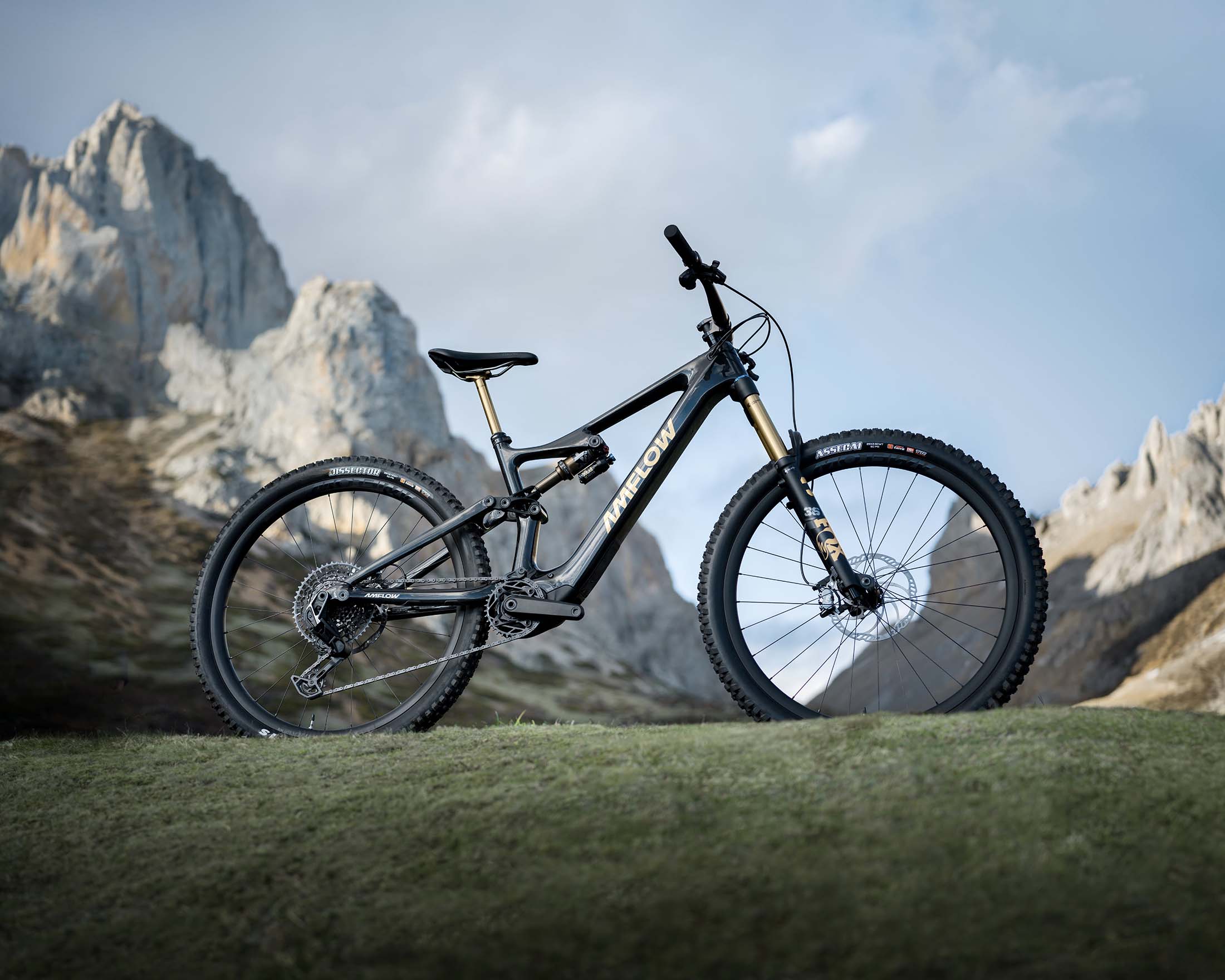

Amflow PL Carbon

Amflow PL Carbon

$6,499.00 $7,499.00

NOTE: These are class 1 only bikes with a top speed of 20MPH, Please consult your local regulations for usage laws.

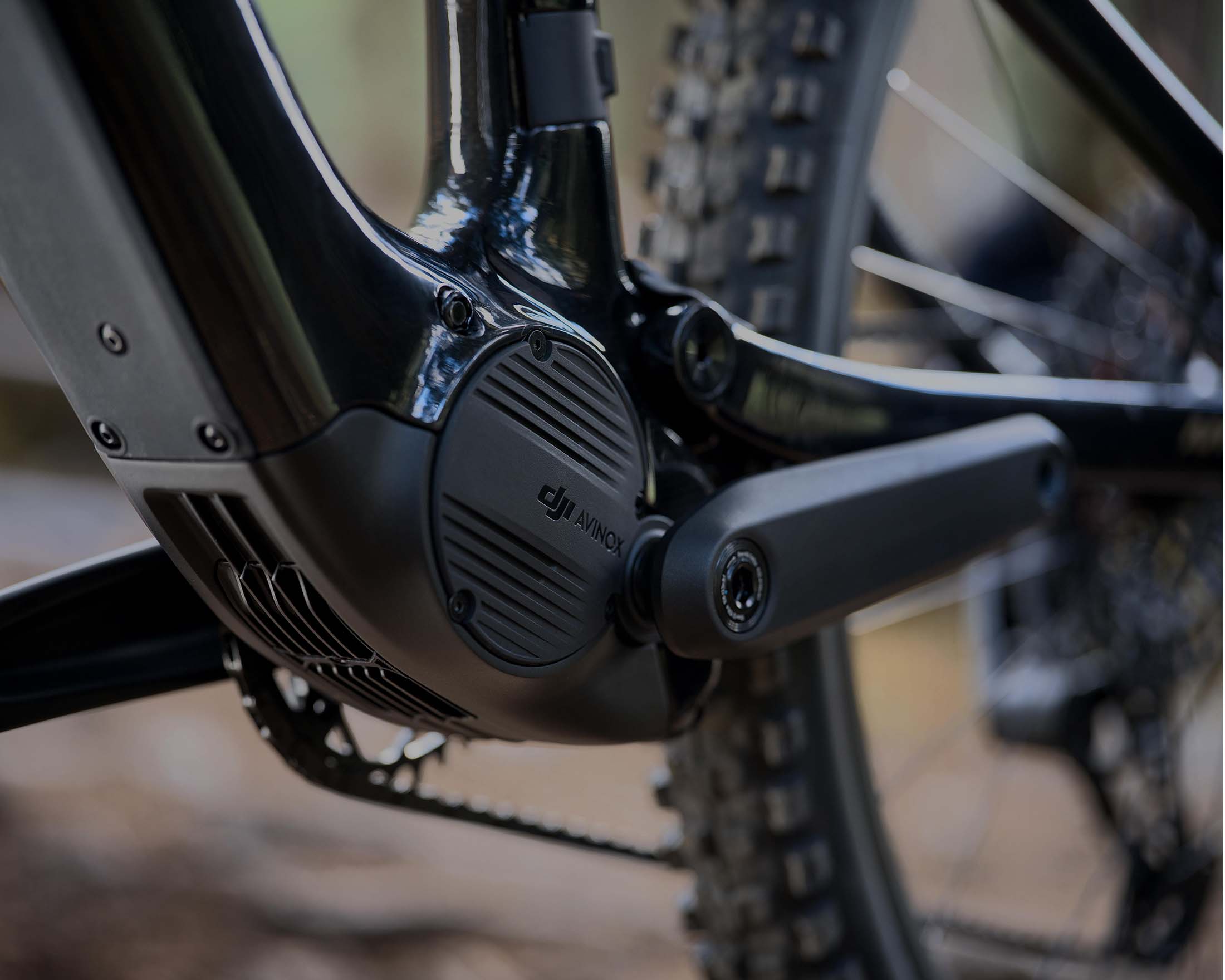

Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.

The durable, high-strength polymer material inside the Avinox M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.



Size Height (cm) Height (inch)
M 162 - 178 5'4 - 5'10''
L 170 - 185 5'7 - 6'1''
XL 175 - 191 5'9 - 6'3''
XXL 185 - 201 6'1 - 6'7''

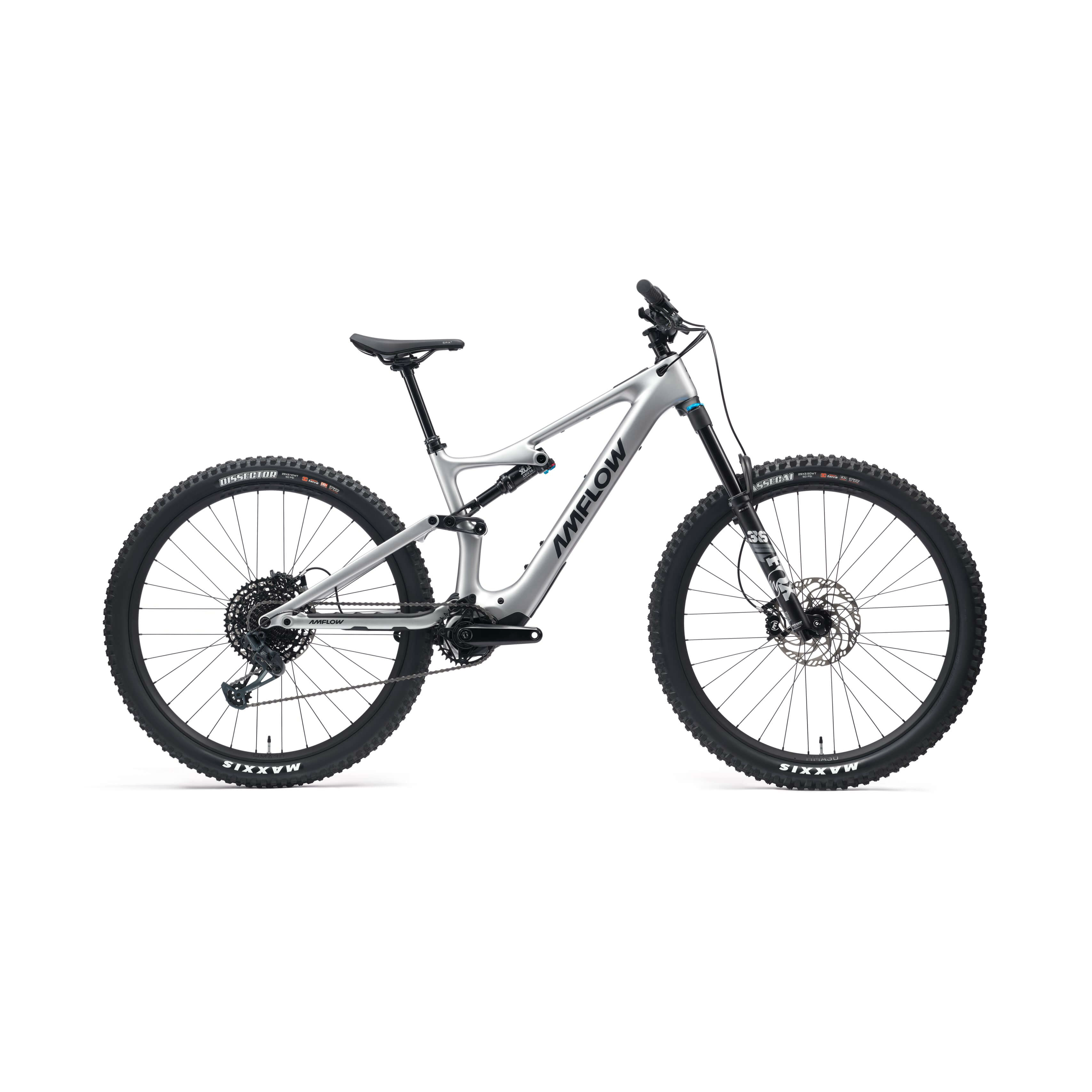

Model: Amflow PL Carbon (800Wh) [Silver]
Size: M
Amflow PL Carbon
$6,499.00
$7,499.00 $6,499.00
Model: Amflow PL Carbon (800Wh) [Silver]
Size: M
Amflow PL Carbon
Amflow PL Carbon
$6,499.00 $7,499.00
<table>
<caption>

</caption>
<thead>
<tr>
<th scope="col"> </th>
<th scope="col">Amflow Pl Carbon (800Wh)</th>
<th scope="col">Amflow PL Carbon (600Wh/800Wh)</th>
</tr>
</thead>
<tbody>
<tr>
<th scope="row">Frame</th>
<td>Amflow PL Carbon Frame <br>Satin Silver<br>150mm rear travel <br>Compatible with 27.5” and 29” rear wheels</td>
<td>Amflow PL Carbon Frame <br>Cosmic Black<br>150mm rear travel <br>Compatible with 27.5” and 29” rear wheels</td>
</tr>
<tr>
<th scope="row">E-Bike System</th>
<td>Avinox M1 Drive Unit: 105 N·m <br> Avinox Screen: 2-inch OLED Control Display<br> U.S Standard Class 2 <br> Avinox Integrated Battery: 800Wh<br> Avinox Wireless Controllers: Right and left sides <br> Avinox Fast Charger: 12A/508W</td>
<td>Avinox M1 Drive Unit: 105 N·m <br> Avinox Screen: 2-inch OLED Control Display <br> U.S Standard Class 2 <br>Avinox Integrated Battery: 800Wh<br> Avinox Wireless Controllers: Right and left sides <br> Avinox Fast Charger: 12A/508W</td>
</tr>
<tr>
<th scope="row">Rear Shock</th>
<td>FOX Float Performance<br> Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever</td>
<td>FOX FLOAT X Factory <br> Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment</td>
</tr>
<tr>
<th scope="row">Fork</th>
<td>FOX 36 Performance<br>160mm travel, GRIP Damper, 15×110mm, 44mm rake</td>
<td>FOX 36 Factory <br> 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake</td>
</tr>
<tr>
<th scope="row">Transmission</th>
<td>Rear Derailleur: SRAM GX Eagle 12-speed <br> Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T <br> Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click <br> Cassette: SRAM PG-1230, 11-50T <br> Chain: SRAM NX Eagle <br>Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)</td>
<td>Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable <br> Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T <br> Shift Levers: SRAM AXS Pod Controller <br> Cassette: SRAM XS-1295 Eagle Transmission 10-52T <br> Chain: SRAM X0 Eagle Transmission Flattop Chain <br> Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) </td>
</tr>
<tr>
<th scope="row">Brakes </th>
<td>Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)</td>
<td>Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)</td>
</tr>
<tr>
<th scope="row">Wheels</th>
<td>Amflow HMA-30 <br> Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready <br> Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt <br> Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T</td>
<td>Amflow HMC-30 <br> Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready <br> Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt <br> Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T </td>
</tr>
<tr>
<th scope="row">Tires</th>
<td>Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR <br> Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR</td>
<td>Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR <br> Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR</td>
</tr>
<tr>
<th scope="row">Handlebar</th>
<td>Amflow Enduro Alloy Handlebar <br> 35mm rise, 800mm wide <br> 5-degree upsweep, 9-degree backsweep</td>
<td>Amflow Enduro Alloy Handlebar <br> 25mm rise, 800mm wide <br> 5-degree upsweep, 9-degree backsweep</td>
</tr>
<tr>
<th scope="row">Stem</th>
<td>Amflow Enduro Stem, One-piece CNC <br> Length: 35mm <br> Clamping diameter: 35mm </td>
<td>Amflow Enduro Stem, One-piece CNC <br> Length: 35mm <br> Clamping diameter: 35mm</td>
</tr>
<tr>
<th scope="row">Saddle</th>
<td>Selle Royal SRX Plus</td>
<td>Ergon SM PRO M/L</td>
</tr>
<tr>
<th scope="row">Seat Post</th>
<td>KS Rage-i <br> M: 150mm <br> L: 170mm <br> XL/XXL: 190mm </td>
<td>Fox Transfer Factory, Travel adjustable in 5mm <br> M: 125-150mm <br> L/XL: 155-180mm <br> XXL: 185-210mm </td>
</tr>

</tbody>

</table>
